    Heavy duty auto door operator - Push Arm

    SKU: FAD051 P BLK

    Full DescriptionDownloads & Guides

    Select Finish

    5

    PA6 Black

    Select Drive arm type

    2

    Push arm

    Request a Sample Now

    Product Description

    Heavy duty silent operation door operator

    Push to open with standard arm set

    Maximum door weight 270kg

    Maximum door width 1219mm

    Configurable to fully automatic, power assisted and low energy

    Certifire CF844 for ITT/120 minute timber and MM/IMM/240 minute steel doors subject to limita-tions as described in the Certifire document

    Reverts to a manual door closer in the event of power loss

    Dimensions

    70 (H) x 130 mm (D) x 700 (W)

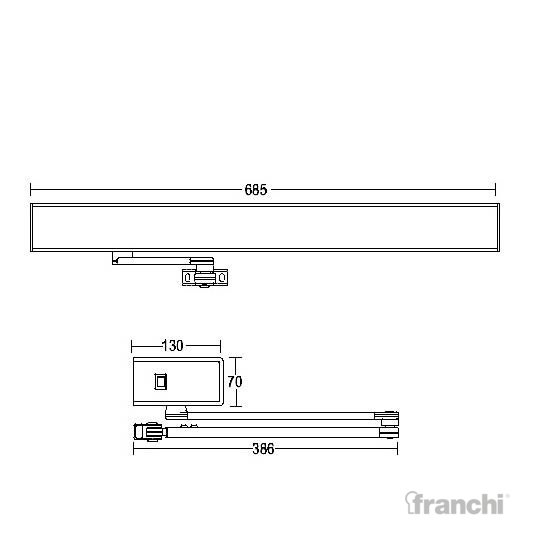

    Dimension Drawing

    Guarantee Information

    1 year guarantee
